您現在的位置：首頁>>產品中心>>襯氟視蠱及管道附件

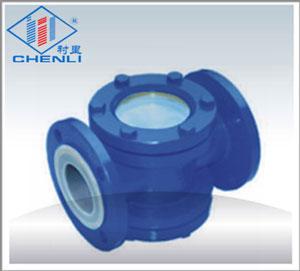

襯氟視蠱及管道附件 Accessories
產品特點：適合各種高腐蝕化學介質
■主要零件材料表 main part and material table
|
零件材料
part name
|
|
不銹鋼 stainless steel |
|||
|
C |
P |
R |
PL |
RL |
|
|
殼體shell |
WCB |
CF8 |
CF 8M |
CF 3 |
CF 3M |
|
玻璃glass |
蹦硅玻璃 Borosilicate glass、鋼化玻璃Tempered glass、石英玻璃 Quartz glass |
||||
|
內襯材料
Lining
material
|
FEP(F4)、PTFE(F4)、PFA(可溶性聚四氯乙烯）、PE（聚乙烯 |
||||
|
墊片 Gasket |
PTFE 聚四氯乙烯 |
||||
|
螺栓 bolt |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr18Ni9 |
1Cr18Ni9 |
|
螺母 nut |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
|
零件材料
part name
|
|
不銹鋼 stainless steel |
|||
|
C |
P |
R |
PL |
RL |
|
|
殼體shell |
WCB |
CF8 |
CF 8M |
CF 3 |
CF 3M |
|
玻璃glass |
蹦硅玻璃 Borosilicate glass、鋼化玻璃Tempered glass、石英玻璃 Quartz glass |
||||
|
內襯材料
Lining
material
|
FEP(F4)、PTFE(F4)、PFA(可溶性聚四氯乙烯）、PE（聚乙烯 |
||||
|
墊片 Gasket |
PTFE 聚四氯乙烯 |
||||
|
螺栓 bolt |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr18Ni9 |
1Cr18Ni9 |
|
螺母 nut |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |

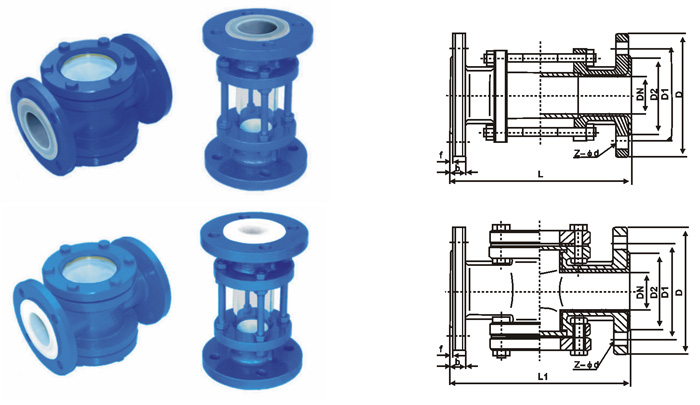

■主要尺寸Main dimension
|
DN |
D |
D1 |
D2 |
F |
B |
Z-d |
H |
||||||
|
Mm |
lnch |
PN1.0Mpa |
|||||||||||
|
15 |
1/2 |
95 |
96 |
65 |
45 |
3 |
4-14 |
160 |
|||||
|
20 |
3/4 |
105 |
105 |
75 |
55 |
3 |
4-14 |
160 |
|||||
|
25 |
1 |
115 |
115 |
85 |
65 |
3 |
4-14 |
200 |
|||||
|
32 |
11/4 |
140 |
140 |
100 |
75 |
3 |
4-18 |
200 |
|||||
|
40 |
11/2 |
150 |
150 |
110 |
85 |
3 |
4-18 |
200 |
|||||
|
50 |
2 |
165 |
165 |
125 |
100 |
3 |
4-18 |
200 |
|||||
|
65 |
21/2 |
185 |
185 |
145 |
120 |
3 |
8-18 |
220 |
|||||
|
80 |
3 |
200 |
200 |
160 |
135 |
3 |
8-18 |
220 |
|||||
|
100 |
4 |
220 |
220 |
190 |
155 |
3 |
8-22 |
220 |
|||||
|
125 |
5 |
250 |
250 |
220 |
185 |
4 |
8-26 |
240 |
|||||
|
150 |
6 |
285 |
285 |
250 |
210 |
4 |
8-26 |
300 |
|||||
|
200 |
8 |
340 |
340 |
310 |
275 |
4 |
12-26 |
300 |
|||||
|
L |
L1 |
D |
D1 |
D2 |
F |
B |
Z-d |
H |
|||||
|
PN1.6Mpa |
|||||||||||||
|
200 |
200 |
95 |
65 |
45 |
3 |
15 |
4-14 |
160 |
|||||
|
200 |
200 |
105 |
75 |
55 |
3 |
17 |
4-14 |
160 |
|||||
|
250 |
230 |
115 |
85 |
65 |
3 |
17 |
4-14 |
200 |
|||||
|
250 |
230 |
140 |
100 |
75 |
3 |
19 |
4-18 |
200 |
|||||
|
250 |
230 |
150 |
110 |
85 |
3 |
19 |
4-18 |
200 |
|||||
|
250 |
230 |
165 |
125 |
100 |
3 |
21 |
4-18 |
200 |
|||||
|
250 |
240 |
185 |
145 |
120 |
3 |
21 |
4-18 |
220 |
|||||
|
250 |
240 |
200 |
160 |
135 |
3 |
22 |
8-18 |
220 |
|||||
|
250 |
240 |
220 |
180 |
155 |
3 |
23 |
8-18 |
220 |
|||||
|
250 |
250 |
250 |
210 |
185 |
4 |
24 |
8-18 |
240 |
|||||
|
300 |
300 |
285 |
240 |
210 |
4 |
26 |
8-23 |
300 |
|||||
|
300 |
300 |
340 |
295 |
265 |
4 |
26 |
12-23 |
300 |
|||||
